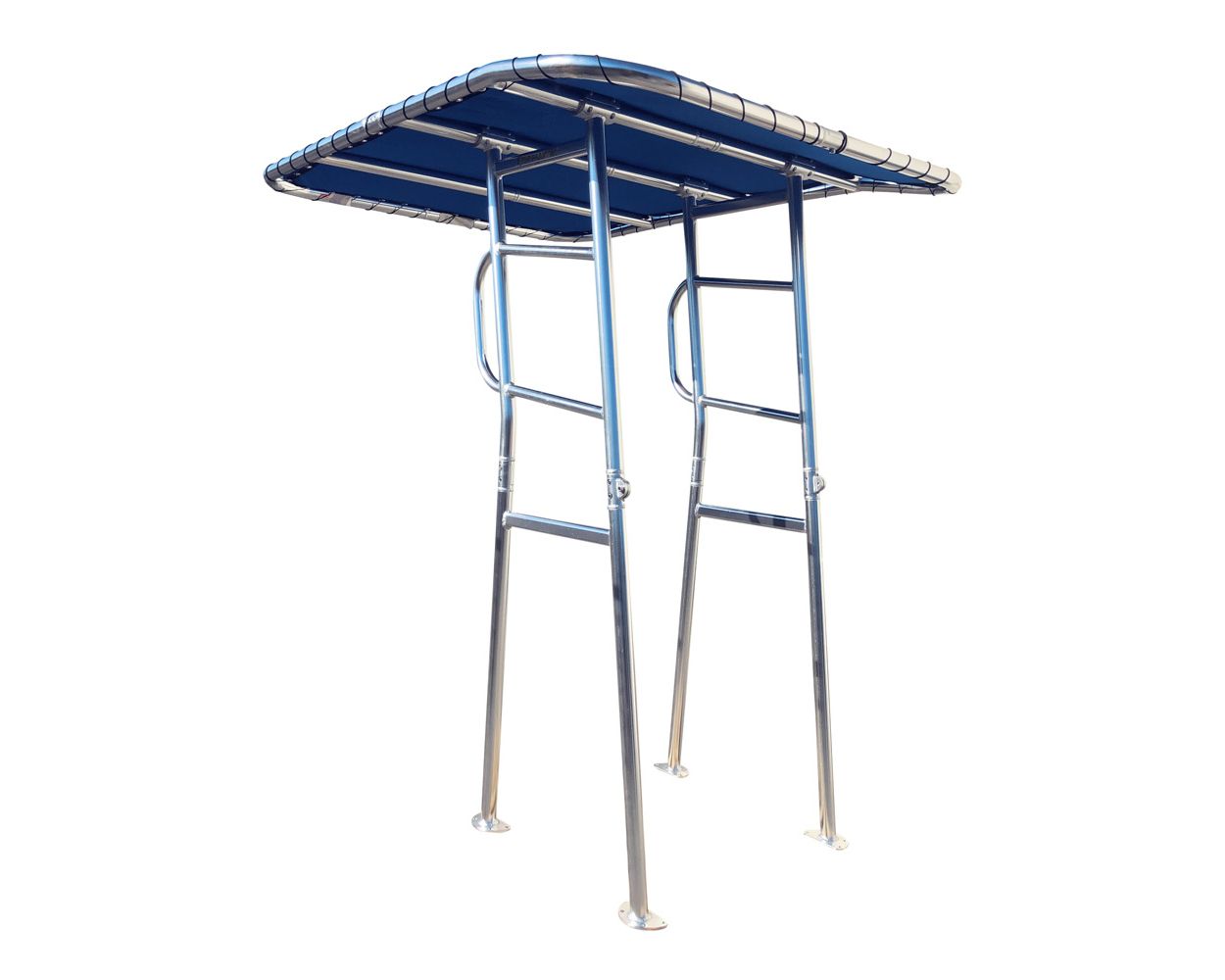

Fishmaster Original Folding T-Top
Estimated Delivery: - *Continental US Only
Patented Twice Folding Design
Fits Center Consoles 24-50" Wide
Easy DIY Installation
Using Fishmaster Patent #7418918, the Original Folding T-Top is crafted with a second fold in the canopy. Not found on any other t-top on the market, this double fold aids in fast and easy storage. When you are ready to get back on the water, simply unfold the top to provide instant protection against sun or rain. For added folding ease, we recommend purchasing a set of quick release knobs. This folding design is ideal for areas such as dry dock storage, utility or garage storage, water access under bridges, and other low clearance problems.
The Original T-Top is designed to fit universal on center console from 24” to 50” wide and can be installed on your boat with ease. With an easy-to-follow installation manual and online instructional videos that are perfect for DIY'ers! Included installation kit has everything you need to transform your boat in an afternoon.
| Universal fit on any center console or rib/inflatable boat with a console 24" to 50" wide. |
| 1.90" Aviation marine grade 6061-T6 extruded and anodized aluminum. |
| Patented design folds down for lower clearance areas. |
| Installs in hours and perfect for those DIY'ers! Installation video and Fishmaster Sales Team available for added support. |
| Marine Grade UV Resistant Sunbrella® fabric available in 9 Colors. |
| 100% Guaranteed or your money back. Love it or return it! Complete with 5 year warranty; unlike other, less expensive t-tops! |
Not sure which t-top will look best? See it on your boat
-
Casting PlatformAs low as $499.00 -
Universal T-Top Center Console Cover - WestlandAs low as $261.16 -

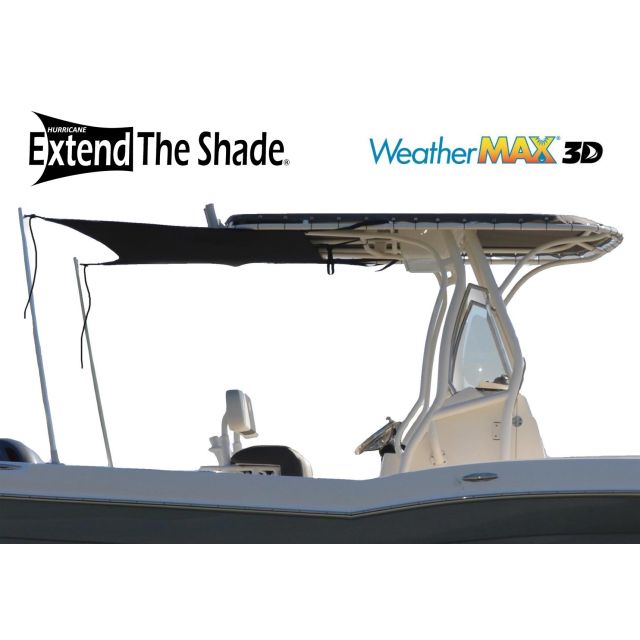

Extend The Shade - T-Top Shade ExtensionAs low as $569.13 -
T-Top Vertical Brace StandoffsAs low as $154.99 -

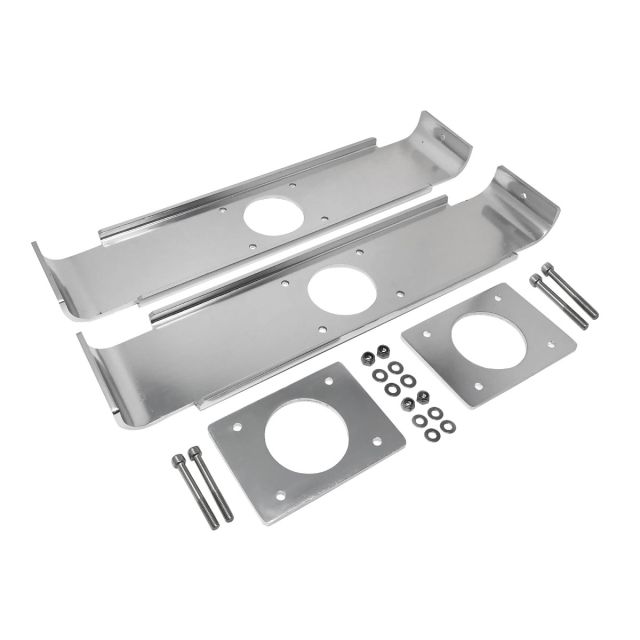

Outrigger Mounting Bracket Pack (pair)Special Price $49.00 Regular Price $119.00 -
Outrigger Holders (pair)As low as $45.00 Regular Price $90.00 -

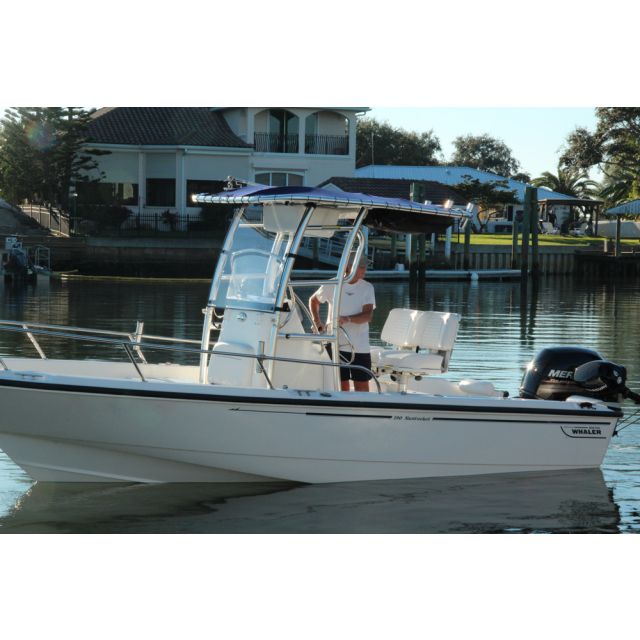

Hurricane Wind Screen™ T-Top WindshieldSpecial Price $399.00 Regular Price $499.00 -
T-Top Standoff Pack (pair)As low as $84.99 -
Deck Mounted Grab BarSpecial Price $109.00 Regular Price $129.00
Folds in Minutes. Not Once, But Twice!™
Designed with the boater in mind, our Fishmaster T-Top is bound to be your first mate. Using Fishmaster Patent #7418918, this folding t-top is crafted with a second fold in the canvas, which aids in easy storage. When you are ready to get back on the water, simply unfold the top to provide instant protection against sun or rain. For added folding ease, we recommend purchasing our quick release knobs, part number SOF003. Ideal for areas such as dry dock storage, utility or garage storage, water access under bridges, and other low clearance problems. Folds without interfering with ice chest, cooler seats, or storage compartments.
Original Fishmaster T-Top Tech Specs
Marine Grade Materials
Structurally Sound Parts with billet machined clamps and tubes.
Ø 1.90" Tubing
Polished & anodized 1.90" tube construction.
6061 T6 Aluminum
Extruded for a strong final product.
Original Equipment Manufacturing processes ensure that our facilities provide consistent and reliable welds. We provide a serial number with each ttop to track the care and skilled craftmanship you would expect. How many other brands can claim they make a product that is standard on boat companies?
The canvas T-Top cover is manufactured from Sunbrella® material with brass grommets that provide a guide to fasten to the tower structure. Rope lashing is included to securely hold this canopy canvas in place. Cordage is constructed of twisteda black nylon 6 material that has a high yield strength.
Optimum strength to weight ratio
Fishmaster T-Tops are made of 1.90" Aviation and Marine grade 6061-T6 extruded aluminum. This material yields a ttop structure that is strong enough to handle choppy waters while being light enough for an easy fold. To protect against degradation of the outdoors these are bright dipped and anodized providing high luster polished finish. Hard to imagine this level of quality can come from a couple boxes that are shipped to your door step in just a couple corrugated cartons!
Simple DIY Installation
Installation Tips
- On all mounting bolts be certain to use anti-sieze to avoid gauling or problem.
- All bolts are 316 stainless steel to protect against corrosion.
- This is the same quality used in surgical medical instruments; nothing but the best!
Installs in Hours
Do It Yourself with easy to follow 5 minute video.
Shipping Information
Most packages ship via FedEx. When you place your order, you will have a choice of delivery timeframes (Ground, Second day, etc.). You will also receive an order confirmation which will allow you to track your shipment's progress. Keep in mind that while most items ship same day, some products require longer time to ship. International customers are responsible for all duties, taxes, brokerage fees, and any other related import fees.
Returns Policy
If for any reason you are not completely satisfied with your purchase, give us a call within 30 days and we can issue you an RMA. Because we are constantly striving to improve our products to meet the needs of our customers, we ask that you provide us with feedback regarding your return. For additional information, please refer to our Return Policy.
Warranty
Most products come with a 5-YEAR warranty. For any products that arrive scratched, bent, or dented we'll replace upon thorough inspection. Please refer to the Warranty Policy for more information.
Got a Question?
The Fishmaster T-Top will fit all fishing boats with center consoles up to 50" wide. The innovative design allows the side legs to adjust to any width up to 50". The legs on each side (front to back) are 27.5" apart (center to center), and 31.5" apart (outsides of mounting feet). You will need a flat floor between these dimensions, on each side of the console, to mount the T-Top. If you have a step close to the center console, or your floor is not flat you will probably need a custom T-Top made if the mounting feet are at different levels. To view the exact dimensions of the T-Top choose the file you would like picture or PDF. To learn more about how the T-Top will fit your boat please review the instruction manual.
Normally about five minutes. There are two bolts that need to be removed from each of the four legs for the T-Top to fold forward. Then two bolts are removed from each side of the top section to allow it to fold. Only one bolt is required for each location except when used in rough water or when over 20 lbs of accessories are attached to the top. For customers that need to more regularly put their T-Tops up and down a quick release knob kit is available.
The top is 60" wide by 80" long and stands 81" above the floor of the boat. The following links provide detailed drawings of the T-Top dimensions. T-Top Dimensions PDF The T-top with fabric weighs right at 108 lbs with 4 rod holders attached.
The tubing is 1-1/2" schedule 40 pipe with a 1.900" outside diameter. The tube material is 6061-T6 marine grade aluminum that is polished and bright dip anodized which is the industry standard for T-Tops, wakeboard towers, radar arches, tuna towers, etc. All the hardware is 316 grade stainless steel, also a workhorse of the marine industry. The fabric is Sunbrella Marine grade Acrylic.
We have an electronics box available as well as various brackets for the Fishmaster that can be used to mount antenna, radars, etc.
Side doors up to 20" wide and 32" tall will be able to open normally. See the dimension drawings above. If your door is larger we include instructions to make the door easily removed by sliding out like provided on the new Boston Whalers.
All that is needed to install the Fishmaster T-Top is a drill, drill bits, basic hand tools and 3M 5200 Marine Adhesive, all available at your local hardware store. All other hardware and Allen wrenches are provided along with a step by step instruction manual. If you have questions we are happy to help, give us a call at 877-777-Tower. Many of our customers prefer to have their T-Tops and accessories professionally installed and locally supported. Please contact an authorized dealer for local sales and support.
We provide several ways to make sure you believe in the Fishmaster products as much as we do. First we provide the Best in the Industry 5 Year Warranty against defect in parts or workmanship. We will repair or replace any defective part at no charge to you. Next we provide a 30 day - No Questions Asked "Love it or Return" Money Back guarantee. Simply ship it back with a note on why you are returning it and we will refund your money, less our cost to ship the product to you.
Yes, we include instructions on how to do this in the T-Top installation manual.
Yes, all tubing is the industry standard 1-7/8" (1.90") outside diameter.
Yes, It was designed for travel at highway speed like all other T-Tops. Since the cover is flat there is very little resistance on the top fabric. We have many customers here in Atlanta that take their boats to the coast (4-7 hours) with their T-Top up on a regular basis and their only complaint is cleaning bugs off the tubing.
Yes, the only difference in installation is use "Sudbury Elastomeric Sealant" from Rule instead of 3M 5200. Most Triumph dealers as well as many marine retailers and online stores carry Sudbury products.
When you say case sizes I believe you are referring to the box dimensions? If so for the Original t-top they are 2 boxes, both are 44x33x10, 50 lbs each.
We should have a windshield by Spring 2020.
No, we offer our Original T-top in polished anodized, powder coated white, and soon will even offer it in textured black.
